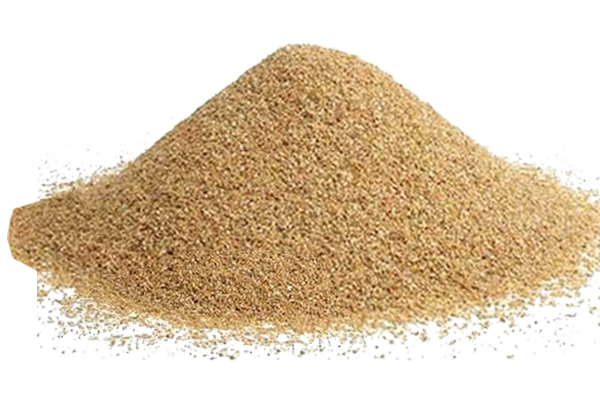

Resin Sand

Resin coated sand is an excellent and accurate method in foundry practices. For producing a casting of high precise dimensions, smooth surface, free of blow holes and to avoid casting defects you must use shell molding process & therefore Resin Coated Sand.

Packaging Size

40 Kgs

Grade Standard

AFS 40-50,50-60,60-70

Color

Brown

Physical State

Solid

Purity

98.9 %

Sieve Size

As Per Requirement

Special Resin Coated Sand

  • We manufacture all grades of resin coated sand for the preparation of shell cores and moulds either by conventional dump box method or by core shooter. Our resin coated sands are specially formulated to reduce emissions, smoke and odor during production of cores and moulds in ferrous and non-ferrous metal casting. Our valuable clients are from automobile foundries, pump and motor casting foundries, engine block foundries and other general Engineering Industries.
  • We manufacture Resin Coated Sands, which are processed using high grade silica sand. By pre-coating it with catalyst and phenol-formaldehyde (PF) resin, this sand is prepared. This sand is manufactured in our ultra-modern coating plant. Our sand is free flowing, smooth and dry with better resistance to moisture. It is offered in grain form also. We also prodzeed resin sand as customers requirement and his application. We Manufacture Resin Coated sand in India with low gas and high strength. We make resin coated sand specially for auto casting and as per customer requirements. Our special resin coated sand is highly suitable for auto parts, hollow corel mold and law peel back. We personally understand customer application and his requirement and make the resin sand for them application.

Advantages of Special

Foundry Resin Coated Sand

  • Shell process products contain low or no formaldehyde.
  • Castings can be produced with close tolerance and with very minimum machining allowances along with excellent surface finish.
  • Shell process molds and cores remain usable indefinitely and are un affected by high humidity storage.
  • Reduced mould/core dilation. Resistance to bending/cracking
  • Shell cores can be made hollow resulting in significantly lighter weight and lower cost cores.
  • Self life of the resin coated sand is unlimited.

Application of Resin Coated Sand's

  • It gives an exceptionally high hot strength

  • Gas evolution is very low during pouring

  • It develops uniform build-up with faster rate of cure

  • It gives strong core & mould

  • It is highly resistant to peel back

  • It is very dry, smooth and free flowing with good resistance to moisture
Enquire Now

Our sustainable processing of silica sand ensures high-quality, socially responsible, and eco-friendly solutions, aligning with corporate sustainability goals and ensuring a sustainable future.
